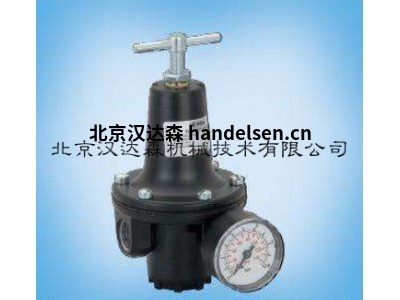

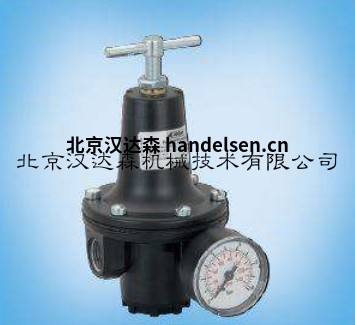

AirCom真空控制閥EVR

M系列DL型操作原理

雙作用，正排量M系列泵有兩個交替的泵室。 驅動單元的壓縮空氣通過控制閥依次進入每個隔膜的后部，從而將介質從交替的泵送腔室中排出。 在所示的泵中，右泵腔處于吸入位置。 隔膜的縮回產生了真空，泵送的介質流入腔室。 左隔膜由壓縮空氣支撐，同時置換了該腔室中存在的介質。 由于兩個膜片通過一個共用的活塞桿連接，因此始終在一個腔室中發生吸力，而在另一個腔室中發生排氣。

DEPA型號：歡迎垂詢漢達森品牌專員吳亞男。

40多年來，DEPA氣動隔膜泵一直是全球惡劣環境和嚴苛應用條件下可靠性和效率的支柱。德國DEPA系列氣動隔膜泵這一高質量的正向位移泵一直應用于各個工業領域。每天，即使是在惡劣的應用條件下，這些泵在世界各地以其可靠性和性發揮著作用。在泵的生產過程中，各個工業領域對泵的質量要求、操作和維護泵的方便性一直是我們的zui高準則。先進的生產工藝、保證質量的檢測系統以及DIN EN ISO29001認證，保證了DEPA產品的高質量。德國DEPA氣動隔膜泵系列介紹



DEPA氣動雙隔膜泵系列DH-TP / TPL

DH-TP和TPL泵分別由PTFE和PTFE導電外殼材料制成。通過更新和優化的設計，泵通過其簡單，堅固和堅固的結構而與眾不同。通用法蘭設計（JIS，ANSI和DIN組合）可實現靈活的全球部署。



DEPA氣動隔膜泵，非金屬泵，P系列

氣動隔膜泵，單個車身部件由聚丙烯，PVDF或PTFE制成。



DEPA氣動隔膜泵，鑄造金屬泵，M系列

DEPA?氣動隔膜泵專為磨料，含固體和粘性介質的平穩轉移而開發。



DEPA氣動雙隔膜泵，不銹鋼泵，L系列，DL-SLV / SUV（食品系列）

L系列泵 - DL-SLV和DL-SUV - 由拋光不銹鋼制成，表面光潔度高達Ra *3.2μm，并獲得FDA（食品和藥品管理局）批準的彈性體。DL-SLV / SUV型適用于關鍵食品應用。



DEPA氣動雙隔膜泵，不銹鋼泵，L系列，DL-SFS / SF型（食品線）

L系列泵 - DL-SFS型和DL-SF型 - 由電拋光鑄造不銹鋼制成，表面光潔度高達Ra *3.2μm，并獲得FDA（食品和藥品管理局）批準的彈性體。DL-SF / SFS型適用于一般食品應用。

 歡迎垂詢漢達森品牌專員吳亞男。

DEPA氣動隔膜泵，不銹鋼泵，L系列無菌生產線，由EHEDG認證

允許在無菌過程中的各種應用，特別是在制藥和保健行業。



DEPA氣動隔膜泵，高壓泵，DB系列

DEPA氣動隔膜泵是壓力保持操作的一種經濟有效的替代方案，因為省去了任何精細和昂貴的閉環或開環控制。

DEPA氣動隔膜泵，附件/自動化

DEPA氣動隔膜泵可為各種應用配備各種附件，即使在自動化領域也是如此。



DEPA DH新一代氣動雙隔膜泵

DEPA DD新一代氣動雙隔膜泵系列DH15，DH25，DH40，DH50和DH80由工業應用開發的鑄鋁制成。



DEPA DH新一代鑄造不銹鋼氣動雙隔膜泵

DEPA DD新一代氣動雙隔膜泵系列DH15，DH25，DH40，DH50和DH80由工業應用開發的鑄鋁制成。

DEPA DB40-CA-DEE

DEPA DL40-SA-TTT

DEPA DL50-AA-TTT

DEPA DL50-AA-EEE

DEPA DL80-AA-TTT

DEPA DL25-PP-TTT

DEPA DP 40

DEPA DP 50

DEPA DP 80

DEPA DP 125

DEPA DB 25

DEPA DB 40

DEPA DB 50

DEPA DZ 15

DEPA DZ 25

DEPA DZ 40

DEPA DZ 50

DEPA DH15

DEPA DH25

DEPA DH40

DEPA DH50

DEPA DL 15

DEPA DL 25

DEPA DL 40

DEPA DL 50

DEPA DL 80

co-ax同軸閥MK / FK 32 DR

特性

端口 螺紋 G 1 1/4 - G 1 1/2

法蘭 PN 16/40

功能 NC

壓力范圍 0-16 / 0-40 bar

A  B max. 40 bar

B  A max. 16 bar

A  C max. 40 bar

C  A max. 16 bar

KV值 A  B 14,1 m³/h

A  C 8,9 m³/h

介質 氣態  液態  高粘稠  凝膠狀  高污染 
歡迎垂詢漢達森品牌專員吳亞男。

流向 見壓力范圍

開關周期 120 1/min

開關時間 打開 440 ms

關閉 250 ms

介質溫度 DC -20 °C — +100 °C

AC -20 °C — +100 °C

環境溫度 DC -20 °C — +80 °C

AC -20 °C — +80 °C

重量 MK 18,0 kg

FK 22,0 kg

標稱電壓 Un 24 V DC

Un 230 V 40-60 Hz AC

驅動 DC 直流電磁鐵

AC 內置式整流器的直流電磁鐵

絕緣等級 H 180 °C

防護等級 IP65

負載率 ED 100%

連接 按DIN EN175301-803標準的插頭, 形式A 4個位置X90°, 電線直徑 6-8 mm
歡迎垂詢漢達森品牌專員吳亞男。

閥門的設計是基于介質和工況的要求.這些因素可能導致設計、密封材料和特性與通用參數表上的規格有所不同.
