德TORWEGGE彈性聚氨酯輪EPUK-080-35-40-K12

德TORWEGGE彈性聚氨酯輪EPUK-080-35-40-K12

陳華麗
QQ：2351635597

手機：18519260275
電話：010-64714988-172
傳真：010-84786709-667
郵件：sales65@handelsen.cn

陳華麗郵箱：sales65@handelsen.cn電話：010-64714988-172

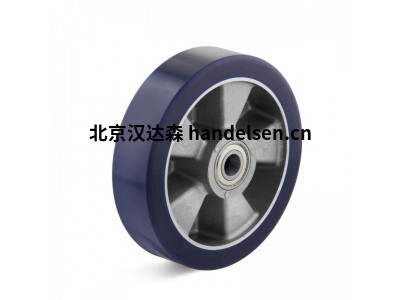

TORWEGGE彈性聚氨酯輪藍紫色滾珠軸承80mm

輪體由聚酰胺制成，帶滾珠軸承

胎面由彈性聚氨酯制成，大約 80° Shore A，

帶圓形側翼。

該車輪系列的特點是運行安靜

、滾動阻力小。

車輪的低磨損特性不會(huì )在地板上留下任何痕跡。

彈性胎面確保更高的駕駛舒適性。

技術規格

軸孔Ø (mm)12

EAN代碼4042974038432

輪輞顏色白色的

輪圈材質聚酰胺

體重（公斤）0.2

滾珠軸承密封現在

滾珠軸承名稱6001-C3

胎面類型加冕

胎面顏色藍紫色

胎面材料彈性聚氨酯

輪轂直徑 (mm)36

輪轂長度（毫米）40

砂輪直徑 (mm)80

輪寬（毫米）35

車輪軸承滾珠軸承

輪型車輪

肖氏硬度 (°A)80

負載能力（公斤）150

貨號型號車輪直徑輪寬承載量

0014302

EPUK-100-35-40-K12100mm35mm180公斤

0014303

EPUK-125-40-50-K15125mm40mm200公斤

0014304

EPUK-150-45-60-K20150mm45mm300公斤

0014305

EPUK-160-45-60-K20160mm45mm300公斤

0014306

EPUK-200-48-60-K20200mm48mm450公斤

0016971

EPUK-250-60-75-K25250mm60mm500公斤

TORWEGGE彈性聚氨酯輪藍紫色滾珠軸承80mm

EPUK-080-35-40-K12

TORWEGGE彈性聚氨酯輪藍紫色滾珠軸承100mm

EPUK-100-35-40-K12

TORWEGGE彈性聚氨酯輪藍紫色滾珠軸承125mm

EPUK-125-40-50-K15

TORWEGGE彈性聚氨酯輪藍紫色滾珠軸承150mm

EPUK-150-45-60-K20

TORWEGGE彈性聚氨酯輪藍紫色滾珠軸承200mm

EPUK-200-48-60-K20

TORWEGGE彈性聚氨酯輪藍紫色滾珠軸承250mm

EPUK-250-60-75-K25
