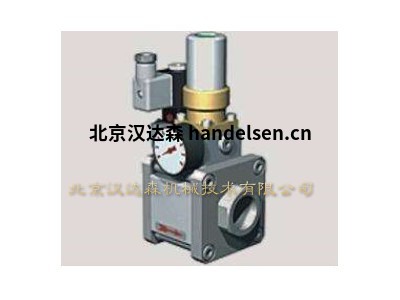

co-ax同軸閥VMK / VFK 32 DR

VMK / VFK 32 DR

特性

端口螺紋 G 1 1/4 - G 1 1/2

法蘭 PN 16/40/100

功能 NC

壓力范圍 0-16 / 0-40 / 0-64 / 0-100 bar

A B max. 100 bar

B A max. 16 bar

A C max. 100 bar

C A max. 100 bar

KV值 18,9 m³/h

介質 氣態 液態 高粘稠凝膠狀漿狀高污染

流向見壓力范圍

開關周期 150 1/min

開關時間打開 100-3000 ms

關閉 100-3000 ms

介質溫度 60 °C 直接安裝的先導閥

環境溫度 50 °C 直接安裝的先導閥

重量 VMK 8,5 kg

VFK 10,2 kg

標稱電壓 Un 24 V DC

Un 230 V 40-60 Hz AC

防護等級 IP65 (P54) DIN 40 050

負載率 ED 100%

閥門的設計是基于介質和工況的要求.這些因素可能導致設計、密封材料和特性與通用參數表上的規格有所不同.
